Visual Defect Sorting Tape Pack Machine Avoid Manual QC Labor

Model Number : ZRB-500DC

Accuracy : ±0.5mm

Appliable size of heat tunnel : 1500(L)*450(W)*250(H)mm

Appliable Product Size : Ø(50-90)mm *H(15-22)mm

Machine Type : Packing Machine

Film : PVC,POF

Place of Origin : CHINA

Type : Packing Production Line

Brand Name : ZHIROBO

Control : PLC Control

Speed : 95 roll/min

Service : Can be customized

Contact Now

High-Speed Color Film Packaging Machine ZRB-500DC
Basic Use:

Mainly suitable for multiple packaging of cylindrical products, such as electrical tape, small rolls of Teflon tape, small rolls of masking tape, small rolls of medical tape, lozenges, and more. It uses a rail-type feeding system, is compatible with both colored and transparent packaging films, and features a single sealing design. The machine operates stably and efficiently, producing packaging that is both attractive and secure.

Main Technical Parameters:
Model ZRB-500DC DRS-5025POF
Power supply AC200-240V 50/60HZ
5KW		 AC380V 50/60HZ
13KW
Packing size Ø(50-90)mm *H(15-22)mm 1500(L)*450(W)*250(H)mm
Packing film PVC,POF PVC,POF
Packing speed 95 roll/min 20-40 pcs/min
Machine size 3036(L)*2635(W)*1518(H) 1800(L)*900(W)*1120(H)
Weight 400kg 230kg
Configuration Parameters:
Model ZRB-500DC DRS-5025POF
Motion Controller HCFA
touch screen Kunlun Tongtai
air switch chint chint
Switching Mode Power Supply Mingwei
Contactor Schneider chint
relay IDEC chint
Servo motor HCFA
Button switch Koneda heli
thermostat
BERM
Solenoid valve asicko
Cylinder Starry sky
electric machinery Mai Li Zhan Peng
Photoelectric sensor Yangming
Photoelectric switch Bojke
Bearing NSK HRB
Visual Inspection Hikvision
Equipment Strength:
  • Our unit adopts visual camera monitoring to confirm labels are correctly stuck on products, alongside laser position sensors that can spot upturned or partially peeled labels. Substandard items will be automatically sorted out, ensuring stable and uniform product quality throughout production.
  • The main body’s feeding conveyor is designed with two working modes: forward feeding and reverse material discharge. Forward feeding is used for regular production runs; when the packaging machine encounters material overflow, reverse discharge can be turned on to ensure upstream equipment runs continuously and smoothly without shutdowns.
  • Material inlet adopts track feeding design. When compared with traditional turnover feeding structures, it runs much more steadily and thoroughly prevents material jamming failures.
  • The complete machine adopts a special motion controller for driving and speed regulation, which ensures smooth and consistent mechanical operation, free from shaking, abrupt jerks or shutdown stalls.
  • The equipment is mainly made of A3 carbon steel and high-quality aluminum alloy, with solid structural strength and refined industrial styling.
  • Tape specifications support flexible adjustment.
  • Fitted with a pulse cold sealing and cutting knife whose effective cutting width reaches 500 mm. It needs no preheating and can be put into use right away; energy-efficient in operation, it produces flat, sleek sealing edges.
  • It is applicable to transparent packaging films as well as printed color films, possessing extensive adaptability for various packaging needs.

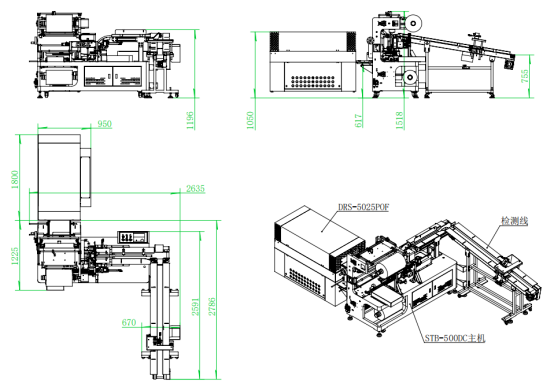

Equipment layout:

Visual Defect Sorting Tape Pack Machine Avoid Manual QC Labor

Visual Defect Sorting Tape Pack Machine Avoid Manual QC Labor
